EXTRUSION

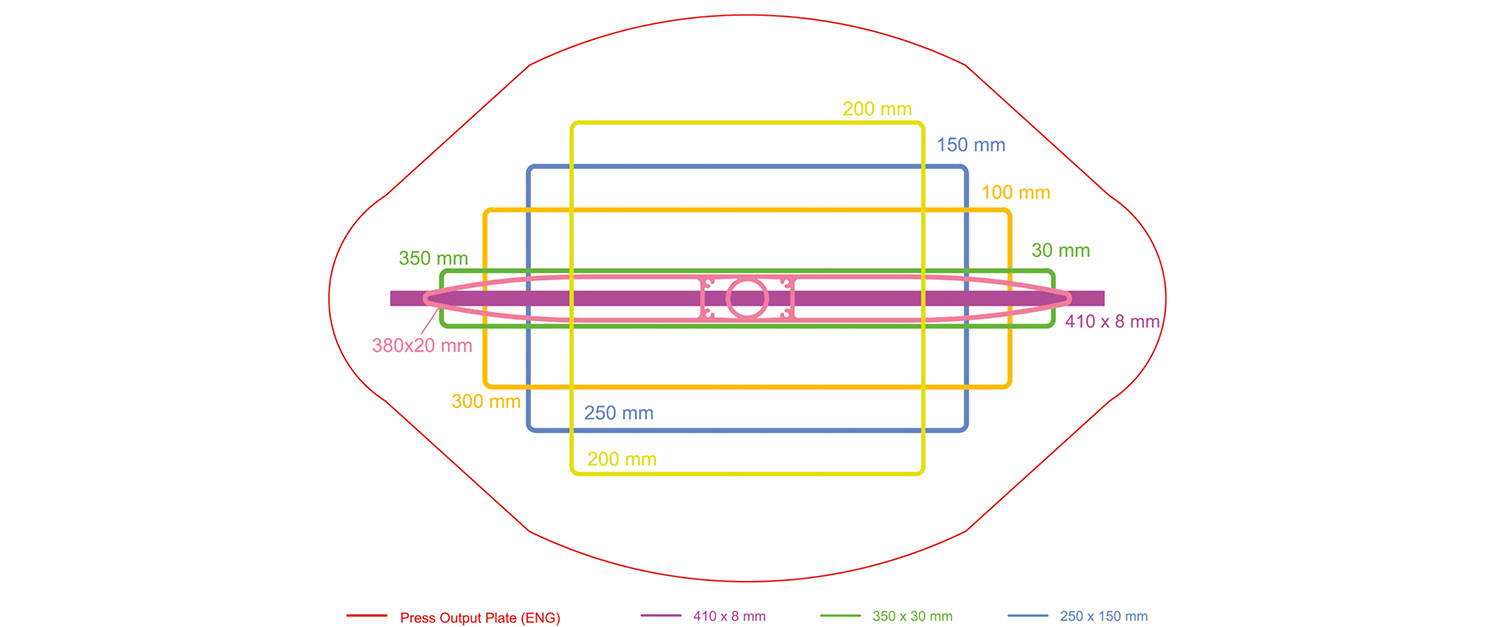

PRODUCIBILTY GRAPH DIMENSIONS OF THE EXTRUDED ITEMS
• Maximum width of the section : 12.60” x 1.97” (320 mm x 50 mm)
• Maximum square of the section : 7,87” x 7,87” (200 mm x 200 mm)
• Maximum diameter of tubular section : 10.63” (270 mm)
• Maximum dimension of plate section : 15.75” x 0.20” (400 mm x 5 mm)
• Maximum weight per meter of the section : 43.67 Ib/ft (65 kg/m)
Extrusion according European standards EN 755-9 & EN 12020
• Heat treatment according European standards EN 755-2:2009
• T4 - T5 - T6 - T64 - T66

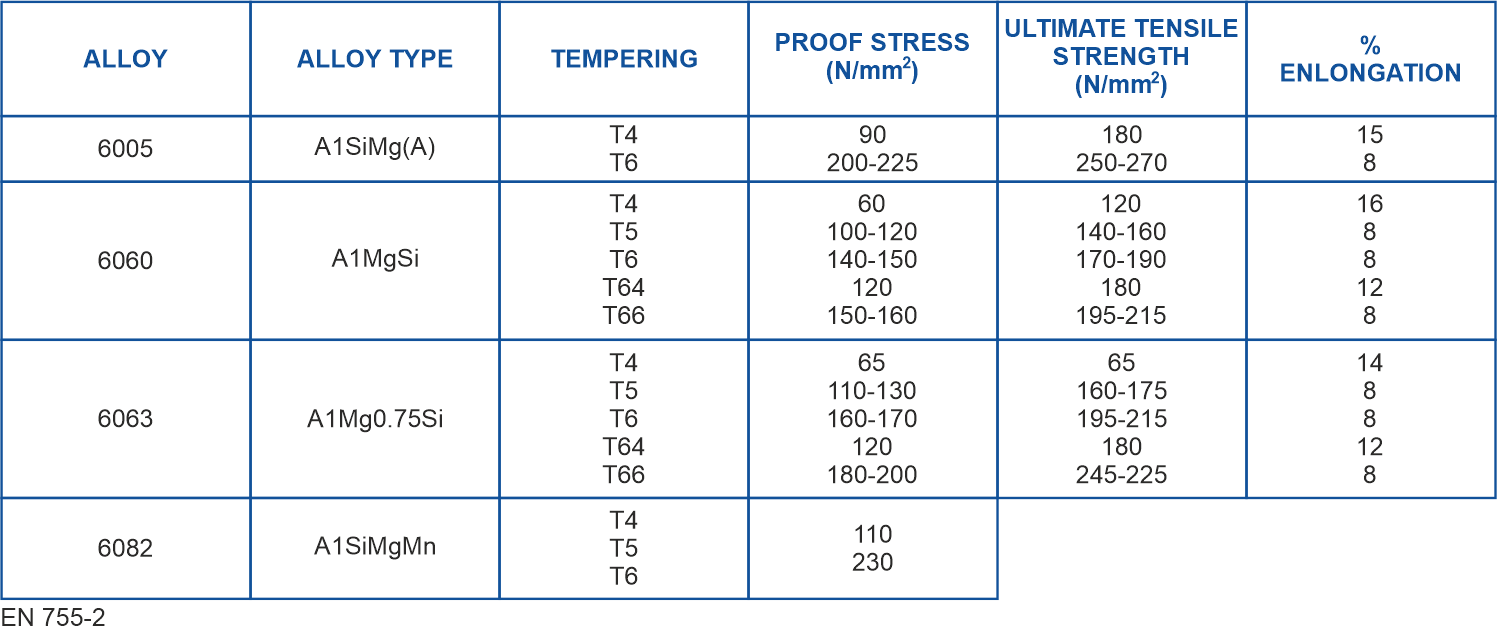

ALLOYS
